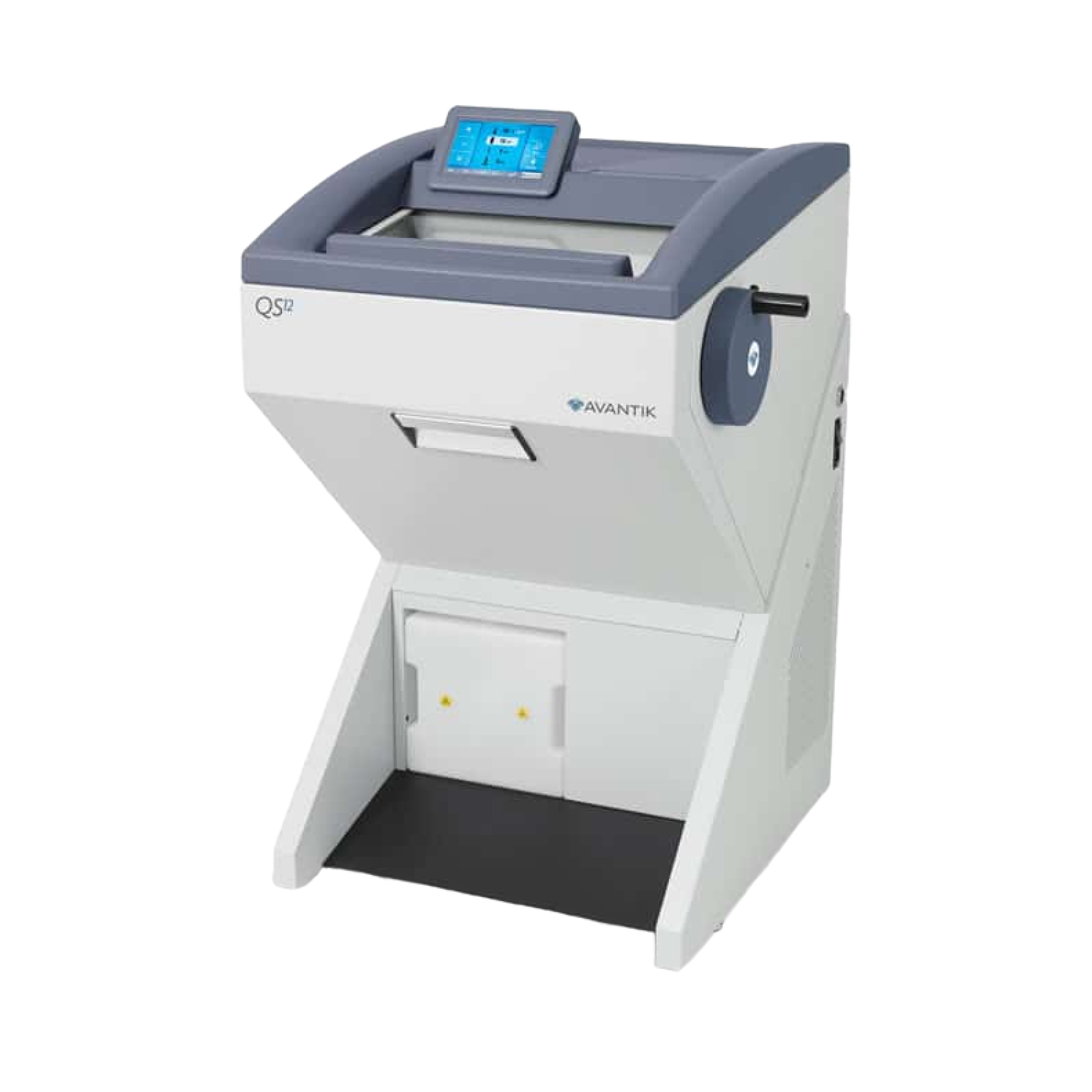

AVANTIK QS12

The Avantik QS12 Cryostat is the perfect addition to your laboratory. The QS12’s precision creates perfect sections every time. This used QS12 has been refurbished and includes parts and labor warranty.

Specifications

• Instrument dimensions 29”W x 30”D x 45.3”H
• Recommended clearances 36”W x 33”D x 60”H
• Instrument weight 315 lbs.
• Electrical requirement 120V, 12 amp*

Technical Specifications

Mechanical Specifications

• Depth 760 mm (29.9 in)
• Width 640 mm (25.19 in) w/o handwheel
• Height Range 1150 mm ( 45.3 in)
• Maximum Weight 143 kg (315.2 lb)

Electrical Specifications

• Power Requirements
  Dedicated 20 Amp circuit recommended.
  100V, 50/60Hz, 7A, +/-10%, 110-120V, 60Hz, 7A, +/-10%
  220-240V, 50/60Hz, 4A, +/-10%
• BTU 1020BTU/hour

Environmental Specifications

• For Indoor Use Only
• Temperature (Operating Limits) +5°C to +35°C (+41°F to +95°F)
  (at a max. Relative humidity of 60%)
• Temperature
  (Recommended Operation)
  +15°C to +30°C (+59°F to +86°F)
  Note
  Performance may deteriorate when operated outside of this range.
• Temperature
  (Transport and Storage) -20°C to +50°C (-4°F to 122°F)
• Relative Humidity Max. 60% RH up to 35°C
• Altitude Up to 2000 m (6,500 ft)
• Pollution Degree 2
• Over Voltage Category II
• Floor Loading Requirements 230 kg/m² (507 lb/ft²)
• Safety Class I
• Sound Emission 45 dB (A) – measured with 1m distance to the instrument.
• Refrigerant R404a, lling amount: 100…120V 175g 220…240V 175g

AVANTIK QS12 CRYOSTAT USER MANUAL
