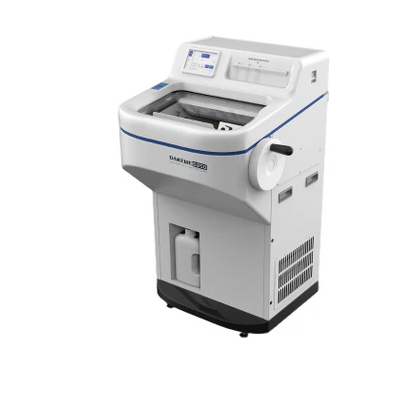

DAKEWE 6250

Reliable section quality

Exquisite mechanisms

Driven by precise motors and durable guide rails, Dakewe 6250 cryostat produces uniform section continuously and fears not heavy workload.

Applicable to all types of tissues

Dakewe 6250 cryostat works smoothly when sectioning different kinds of tissues, hard or soft, large or small.

Fulfill laboratory requirements

18 freezing stations and 2 Peltier elements on the large freezing shelf with clear number markings on the large freezing shelf aid specimen identification during sectioning.

Stable blade hold

The high-quality blade holder adapts to both high and low profile blades and has an arc design to minimize blade trembling.

Relaxing user experience

All crucial information at a glance

The large color touch screen on Dakewe 6250 cryostat allows for the display of important parameters and toggles, making it easy to learn and use. A side control panel is present for convenient operation.

Hassel-free components

The heat extractor is coated with an anti-sticking layer to prevent sticking. Anti-roll guide designed with clamp can be hold at any position flexibly. The freezing shelf is frost-free.

Clear sight all the time

The glass window is heated to prevent frost from building up.

Cooling fast, cooling lasts

Powerful compressor

Continuous sectioning is made possible thanks to the quality compressor and smart temperature control algorithm.

Rapid cooling peltier stations

The peltier stations can rapidly reach and stablize around -55℃ to -60℃.

Innovative design, we care about you

Schedule to fit your schedule

UV disinfection and defrosting can be activated as scheduled or manually to synchronize with the laboratory's routine. Dakewe 6250 can be switched to sleep mode according to the preset schedule and thus helps to save energy.

Throughout drying

Extra drying function allows for rapid expulsion of moist in the chamber, saves the time from naturally drying and provides better drying results.

Elegancy

The monolithic shell of the cryostat is maintain and clean.

Section thickness: 1 μm - 100 μm

Trimming thickness: 1 μm - 600 μm

Increment speed: 300 μm/s（±10%）， 900 μm/s（±10%）

Chamber temp.: -35℃ - +40℃

Freezing plate temp: Minimum temperature -40℃（±5℃）

Number of freezing plates: 18 pcs

Rapid cooling peltier stations: 2 pcs, Minimum temperature -60°C（±5℃）

Size （with handwheel）: 780 mm * 700 mm * 1280 mm

Weight with packaging: 208 ± 10kg

power consumption: 1200 VA

Supply voltage / frequency: 220 - 240 VAC, 50 HZ/110 - 127 VAC，60 Hz

6250 Cryostat Microtome Brochure
