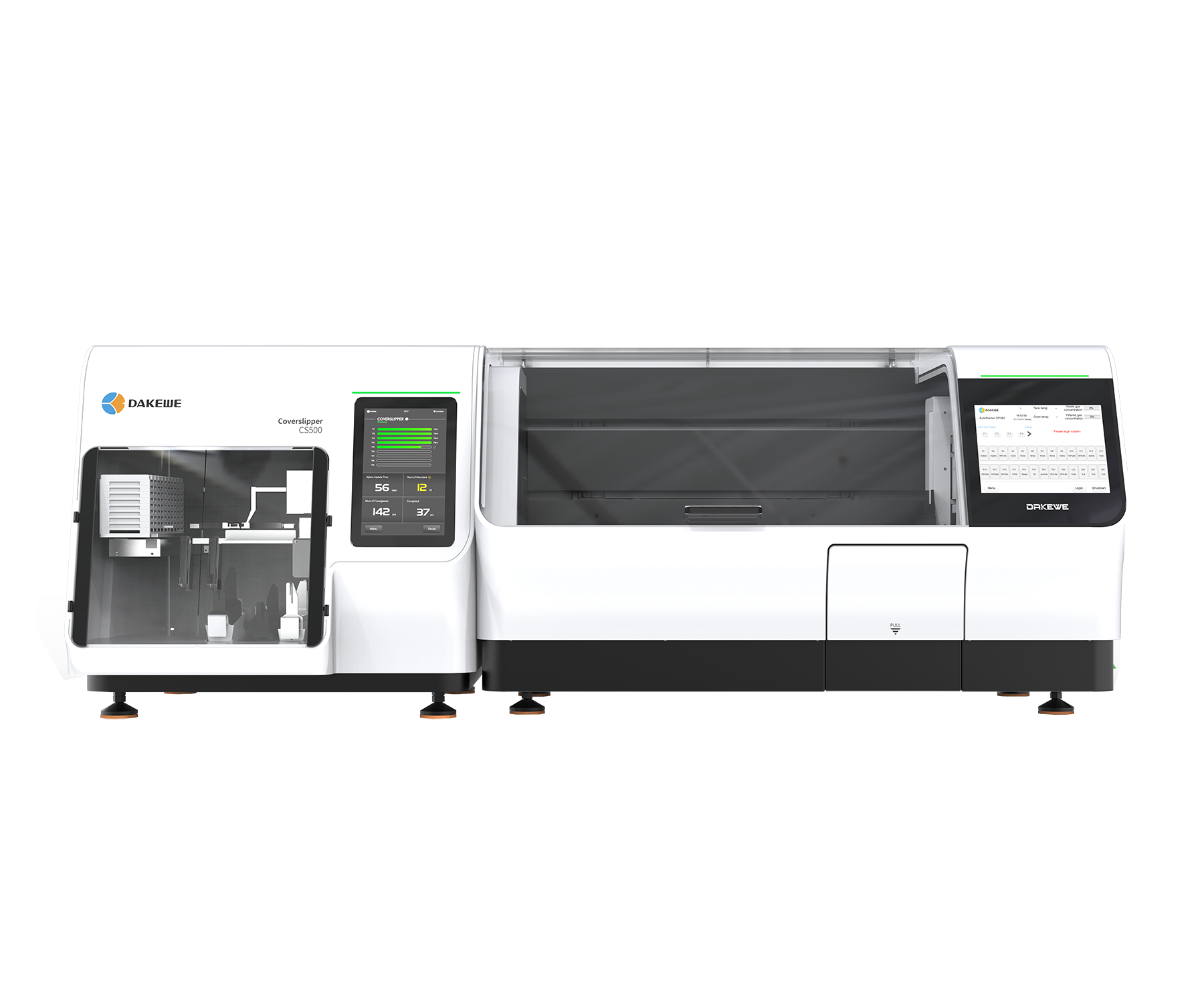

DAKEWE DP360 Stainer

High throughput, fully automated staining and coverslipping process. Quality control system embedded and ready-to-use consumables, and patented AAT system keeps each slide consistent.

DP360 Technical Specifications

Dimensions, unpacked (W x D x H): 1066 x 700 x 630 mm
Net Weight: approx. 130 kg
Power consumption: 1200 VA
Supply voltage/ frequency: 100 - 240 VAC 50/60 Hz
Operating temperature range: +15°C to +40°C
Total stations: 26
Oven station and temperature: 1; Max temperature 75°C
Reagent heating station: 4; Max temperature 38°C
Water washing station: 4
Reservoir volume: 480 ml ± 20 ml
Program storage capacity: ≥100 programs
Slide rack capacity: 30 pcs
Throughtput H/E: 360 slides per hour

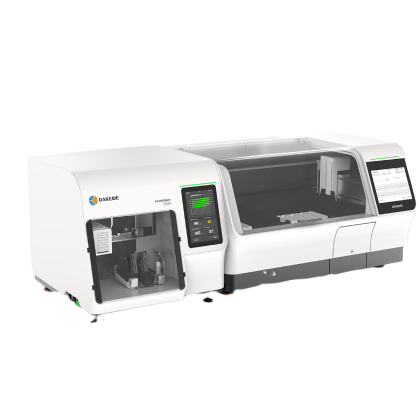

CS500 Technical Specifications

Dimensions, unpacked (W x D x H): 660 x 770 x 640 mm
Net weight: approx.90 kg
Power consumption: 180 VA
Supply voltage/ frequency: 100 - 240 VAC, 50/60 Hz
Horizontal output storage: 90 pcs
Coverslip capacity: 200 pcs
Mountant bottle capacity: 250 ml
Throughput: 360 slides per hour
Coverslip sizes ( mm): 24 x 50

DAKEWE DP360 & CS500 Stainer & Coverslipper Workstation Brochure

DAKEWE DP360 & CS500 Stainer & Coverslipper Workstation Video
