High tech printing technology.

Thanks to the non-contact UV laser marking technology, S200 offers:

• High printing speed - as fast as — seconds per slide
• Crisp print — 2500 dpi high resolution and great scan rate
• Minimal maintenance — non-contact printing results in little to none maintenance
• Rich content — Alphanumeric, multiple languages, symbols, 1D & 2D codes, graphics

Innovative upward slide delivery.

Gravity-driven delivery system are prone to break the slides and induce blockage.

This will never happen in S200 as it implants upward slide delivery system, slides are delivered upwards and then horizontally to the printing area, eliminating possibility of slide fragmentation.

Dual input, dual output.

Dual input, double selection — with two loading hoppers, S200 can store two types of slides separately

Large capacity — 200-slide capacity offers relief from repetitive reloading

Dual output, double printing modes — upper slot for on-demand printing and lower hopper for batch printing, accommodate your laboratory routine

Fit seamlessly into your current workflow

Slide compatibility — compatible with most of slides with paint coated tab

Seamless integration — send printing command from the built-in software, PC software or integrated LIS

Easy operation — windows-based system with concise UI

Easy and safe operation.

User safety— triple-layer filters in the air purification system keep odor and dust away from operator

Front loading feature — convenient loading and unloading

Printing technology: Non-contact ultraviolet laser marking technology

Print mode: On-demand and batch printing

Loading hopper quantity: 2

Loading hopper capacity: 100 slides in each hopper

Output hopper capacity: 50 slides

Print speed: Up to 5 seconds/slide

Air purification: Built-in activated carbon air purification system

System interface: LIS, HIS, PIS, PACS

Printer interface: USB and Ethernet

Power requirements AC 100 - 240 V, 50/60 Hz, 210 VA

Dimensions (W×D×H): 240 × 440 × 450 mm

Weight: Approx. 72lbs.

Operating systems: Win 7, Win 10, Linux

DAKEWE S200 Slide Printer Video

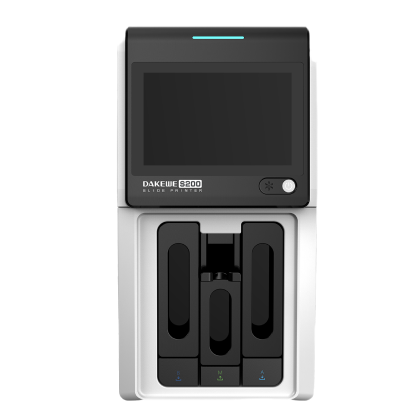

DAKEWE S200 Slide Printer
