Name: DAKO AUTOSTAINER PLUS
Brand: LABS-Laboratory Advanced Business Solutions
SKU: IHC DAKO PLUS
Availability: InStock

Description

PROFESSIONALLY REFURBISHED
1 YEAR WARRANTY
DEDICATED SALES PROFESSIONAL
ON STAFF PATHOLOGIST
CONSULTING PARTNERS
LAB DESIGN & FULL LAB SET UP OPTIONS

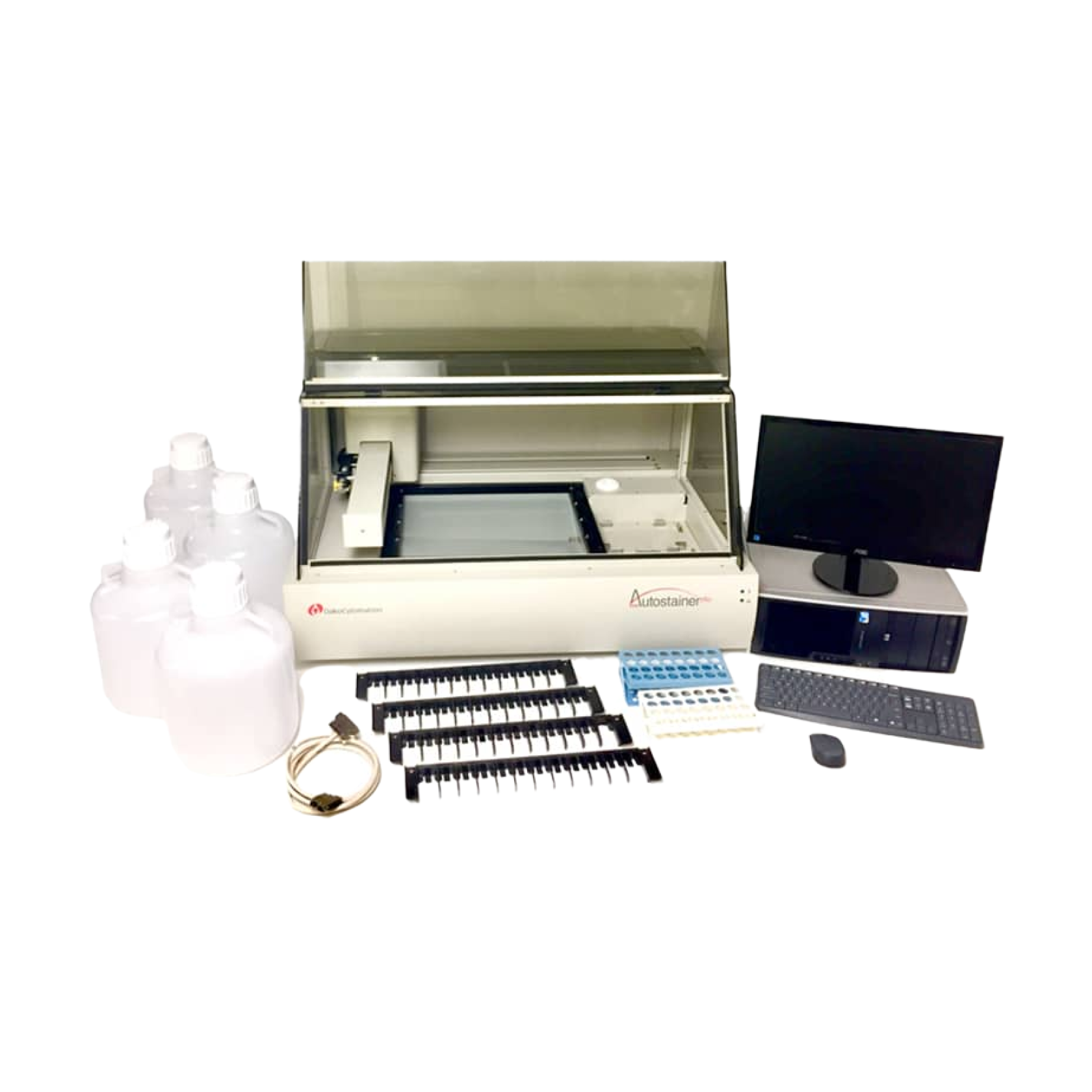

Includes:

Dako Autostainer PLUS Base Unit
Slide Rack (4x)
Reagent Rack, Blue
Reagent Rack, White
Buffer Container,10L
Deionized Water Container, 10L
Input Buffer Tube with Fittings, 6 foot
Input Deoinized Water Tube with Fitting
Waste Container,10L (2x)
Output Toxic Waste Tube with Fitting
Output Non-Toxic Waste Tube with Fitting
Slide Rack
Autostainer Operating Software
Power Cord
Operator Manual Workstation to include:
Computer with Dako PLUS Software
Monitor
Keyboard
Mouse
DB9 Pin Cable
Motion Data Cable
Slide Label Printer with Software
Printer Labels, 1 Roll
Color Ink Jet Printer with Software
Power Cord

Summary and Explanation

Autostainer PLUS offers laboratories software and connectivity options that significantly enhance workload management and report generation, all while ensuring optimal immunohistochemistry staining outcomes.

Featuring a sleek profile and compact design, Autostainer PLUS reduces the use of precious laboratory bench space while delivering the dependable performance associated with an Autostainer. It allows for further space conservation and centralized slide programming by linking up to three units to one computer.

Product Specs

Hardware Specifications: Dimensions 1.02m W x 0.69 m D x 0.61 m H 40” W x 27” D x 24” HWeight 140 lb. (63.5 kg)Electrical Requirements120 V 110/120 V (±10%) 60 Hz (±2Hz)220 V 220/240 V (±10%) 50 Hz (±2Hz)Normal operating temperature18º C-26º C (64º F-79º F)Slide rack capacity 1 – 12 glass slidesTotal slide capacity 1 – 48 glass slidesReagent capacity 64 different reagents (15 Ml/reagent vial)Reagent dispense volumes 100, 150, 200, 400 and 600 µLReagent probe volume capacity 100 µL minimum, 1200Computer Controller (These are the minimum features provided. Dako reserves the right to change the computer controller specifications at any time.) NOTE: Computer specifications may vary.Monitor 14”Printer color LaserJet or InkjetSurge Protector 120 VAC, 15 Amps, 50/60 HzSoftware SpecificationsOperating System Windows® 98, XP or equivalent.Operating Logic Designed to calculate the most time-efficient sequence to complete a programmed staining run.Protocol Logic Flexible selection of steps including rinses. Maximum of 35protocol steps (including rinse steps)Idle Rinse Buffer is applied to slides during a staining run to keep specimens we when no reaction is occurring.Rinse Default Settings Buffer rinse every 30 minutes prior to the start of a run, when delayed start is selected. Buffer rinse every 30 minutes during a staining run. Water rinses every 60 minutes after completion of run. Default setting for time and the amount of buffer dispensed can be changed by a Dako representative upon request.Incubation Time Minimum time is 2 minutes.

Downloads

DAKO AUTOSTAINER PLUS USER MANUAL
