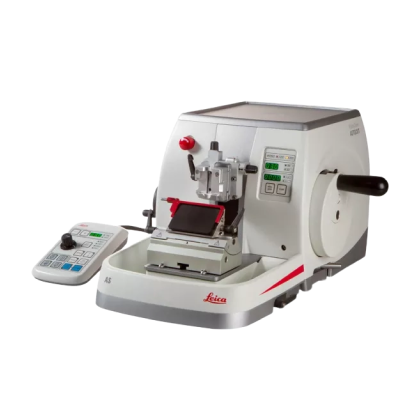

A Microtome Unlike any Other

Do you struggle to meet the needs of EVERY microtomist in your lab? Finally, there is a solution designed to give your users the freedom they desire: HistoCore AUTOCUT. The new generation of microtomes from Leica Biosystems is built upon our 145+ year heritage of market-leading microtome design. It allows users to select among automated, semi auto-automated, or manual sectioning modes based their personal preferences.

• Every microtomist can use their preferred sectioning mode:
• Maximize safety in the lab: The AUTOCUT improves on past automated models with an automatic electronic brake to minimize the risk of injury during operation.
• Shorten cleaning time from minutes to seconds with the Antistatic Waste Tray.

Type: Motorized
Nominal Supply Voltage: 100 / 120 / 230 / 240V AC
Nominal Frequency: 50/60 Hz
Maximum Power Consumption: 100 VA
Protection Class: I
Power Fuses: 2 x T 3.15 AL, 250V
Pollution Degree: 2
Overvoltage Category: II
Maximum Heat Emission: 340 J/s
Operating Temperature Range: +18°C to +35°C
Temperature Range During Storage: +5°C to +50°C
Relative Humidity During Operation: 20% to Max. 80% Non-Condensing
Relative Humidity During Storage: 10% to Max. 85% Non-Condensing

BASIC INSTRUMENT
Width (including handwheel and coarse feed wheel): 477 mm
Depth (including waste tray): 620 mm
Height (without top tray): 295 mm
Weight (without accessories): Approx. 40 kg
CONTROL PANEL
Type: Separate control panel & in-housing integrated instrument control panel
Width: 119 mm
Depth: 193 mm
Height: 50 mm
Height (in inclined position): 81 mm
Weight (net): 0.6 kg
Microtome Performance Specs
Specimen Feed: approx. 24 mm ±1 mm
Vertical Stroke: 70 mm ±1 mm
Large Standard Clamp: 55 x 50 x 30 mm

Super Cassette Clamp: 68 x 48 x 15 mm
Motorized Sectioning Speeds: 0 - 420 mm/s ±10%
SPECIMEN RETRACTION
In Manual Sectioning Mode: 5 - 100 µm (in 5 µm increments); can be turned off
In Motorized Sectioning Mode: Speed-Dependent; can be turned off
SPECIMEN ORIENTATION
Horizontal: ± 8°
Vertical: ± 8°
SECTION THICKNESS SETTINGS
Range: 0.5 - 100 µm
Setting Values: 0.5 - 5 µm (in 0.5 µm increments)
5 - 20 µm (in 1 µm increments)
20 - 60 µm (in 5 µm increments)
60 - 100 µm (in 10 µm increments)
TRIMMING SECTION THICKNESS SETTINGS:
Range: 1 - 600 µm
Setting Values: 1 - 10 µm (in 1 µm increments)
10 - 20 µm (in 2 µm increments)
20 - 50 µm (in 5 µm increments)
50 - 100 µm (in 10 µm increments)
100 - 600 µm (in 50 µm increments)
