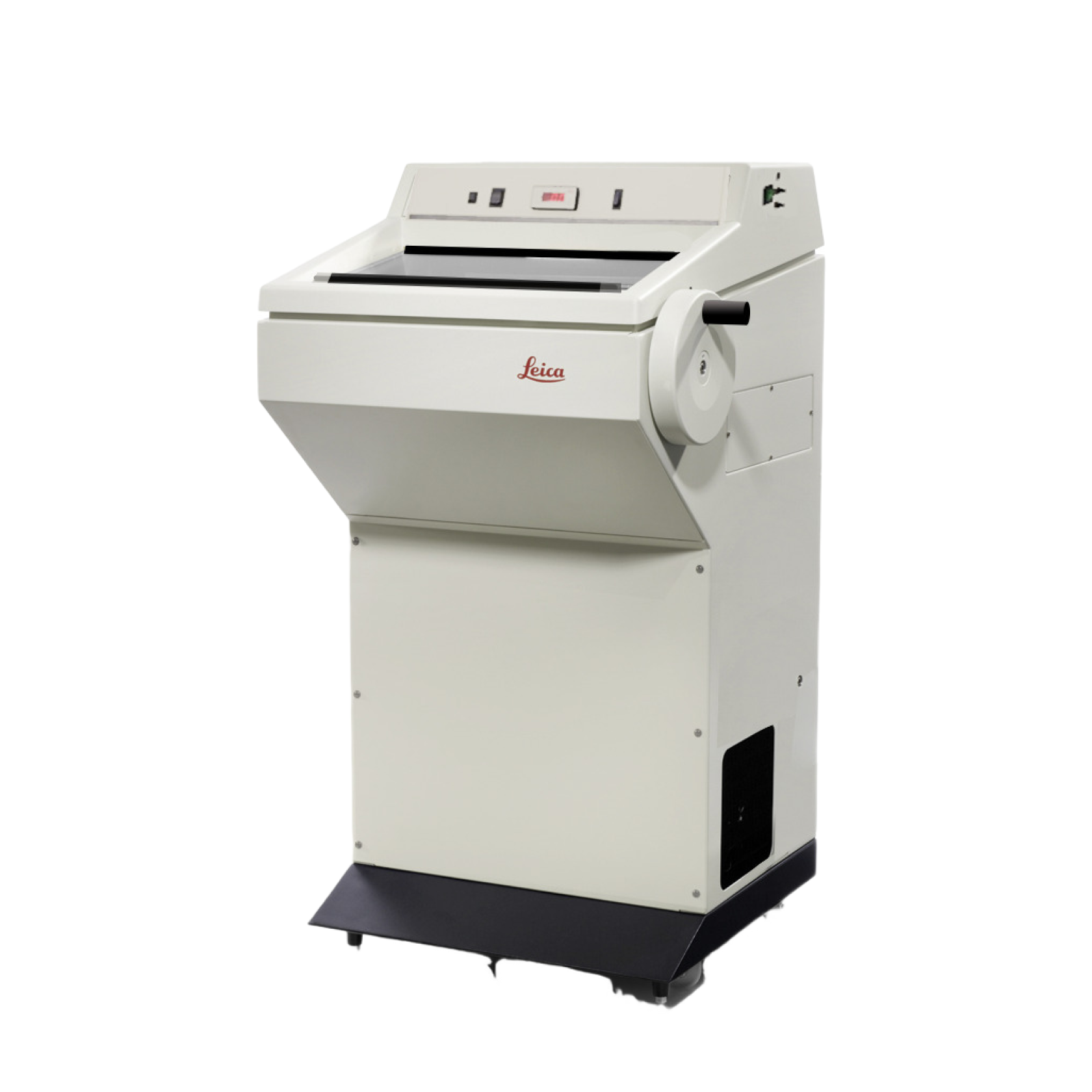

Name: Leica CM1510 Mohs Cryostat
Brand: LABS-Laboratory Advanced Business Solutions
SKU: LAB CM1510
Availability: InStock

Description

Leica® CM1510 Cryostat

The Leica® CM1510 Cryostat is great for routine histology and ideal for Mohs surgery. Our refurbished Leica® CM1510 is as budget-friendly and efficient as they come. If you have limited space in your lab and need a cryostat with a small footprint, then you should take a serious look at the CM1510. You won’t find one in its class that takes up less room.

If budget and value are important then look no further than a properly refurbished Leica® CM1510 cryostat. This unit is TRULY REFURBISHED, and FULLY WARRANTIED. This cryostat can be included in our turn-key or customizable Mohs startup package. Contact us today for details.

Features and Benefits:

Considered a “best-value cryostat”
Great for Mohs surgery
Quick freezing of specimen
Actively cooled quick freezing shelf with defrost
Powerful compressor
Easy to use specimen orientation section
Compact dimensions
PROFESSIONALLY REFURBISHED
1 YEAR WARRANTY
DEDICATED SALES PROFESSIONAL
ON STAFF PATHOLOGIST
CONSULTING PARTNERS
LAB DESIGN & FULL LAB SET UP OPTIONS

Summary and Explanation

The Leica CM1510 Cryostat offers exceptional value for a range of cryogenic and critical applications, including MOHS surgery. It enables swift freezing and sectioning of skin into multiple thin layers.

With time being of the essence in processing frozen specimens, this cryostat comes equipped with an actively cooled quick freezing shelf featuring a defrost function and a robust refrigeration system to deliver speedy outcomes. The specimen can be quickly clamped and oriented using the user-friendly orientation system, ensuring rapid preparation and high-quality sections.

For efficient trimming, the cryostat includes a motorized coarse feed. Its quick-freezing shelf, cooled to -45º C and equipped with a heat extractor, facilitates exceptionally rapid freezing of specimens. Additionally, a manual defrost cycle is available for activation as needed. The cryochamber, well-lit and insulated, is designed for easy access via a heated sliding window, providing ample space for convenient handling of specimens.

For added safety during the exchange of specimens or knives, the Leica CM1510 Cryostat features a handwheel that smoothly operates and can be locked in the upper position to prevent injuries.

Product Specs

Technical Specifications:

Section thickness selection: 1 to 50 µm:
Specimen orientation: 8
Specimen feed: 25 mm
Vertical stroke: 59 mm
Coarse feed speed: 0.8 mm/s
Width (with handwheel): 680 mm (26.77 in)
Depth: 680 mm (26.77 in)
Height: 1175 mm (46.26 in)
Weight: (including microtome) Approx. 105 kg (231.49 lbs)

Downloads

Leica CM1510 User Manual
