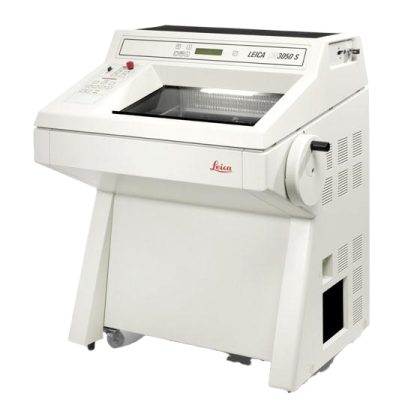

Leica CM3050 S Research Cryostat

Width: 882 mm
Depth: 766 mm
Height: 1040 mm
Weight (incl. microtome): approx. 396.8lbs
Temperature setting range: 0°C to -40°C
Maximum specimen size: 40 x 55 mm
Cutting speed: 0.1 mm/s to 170 mm/s
0.1 mm/s to 100 mm/s
Vmax: 210 mm/s
Section thickness setting 0.5 to 300 μm
Maximum specimen size 40 mm x 55 mm
Horizontal specimen feed 25 mm
Vertical specimen stroke 59 mm
Specimen retraction 50 pm
Specimen precision orientation by 8° (x/y/z axis)
Trimming 5 to 150 μm ± 0,5 μm in steps of 5, 10, 30, 50, 100 and 150 μm
Motorized coarse feed at two speeds 500 μm/s and 1,000 μm/s
Cutting speed ranges 0.1 mm/s to 170 mm/s, 0.1 mm/s to 100 mm/s, Vmax 210 mm/s
Temperature setting range 0°C to -40°C
Defrosting programmable 1 automatic defrost cycle/24 h duration; from 6 to 12 min; manual defrosting
Freezing shelf temperature Approx. -43°C at an ambient temperature of 22°C
Temperature setting range -10°C to -50°C (+/-3 K)
Dimensions (W x H x D) 882 x 1040 x 766 mm
Weight (including microtome) Approx. 397lbs
Power draw 1800 VA

Leica CM3050 S Research Cryostat Brochure
