Name: Leica CM1850 Mohs Cryostat
Brand: LABS-Laboratory Advanced Business Solutions
SKU: LAB CM1850
Price: 20000.0 USD
Availability: InStock

Description

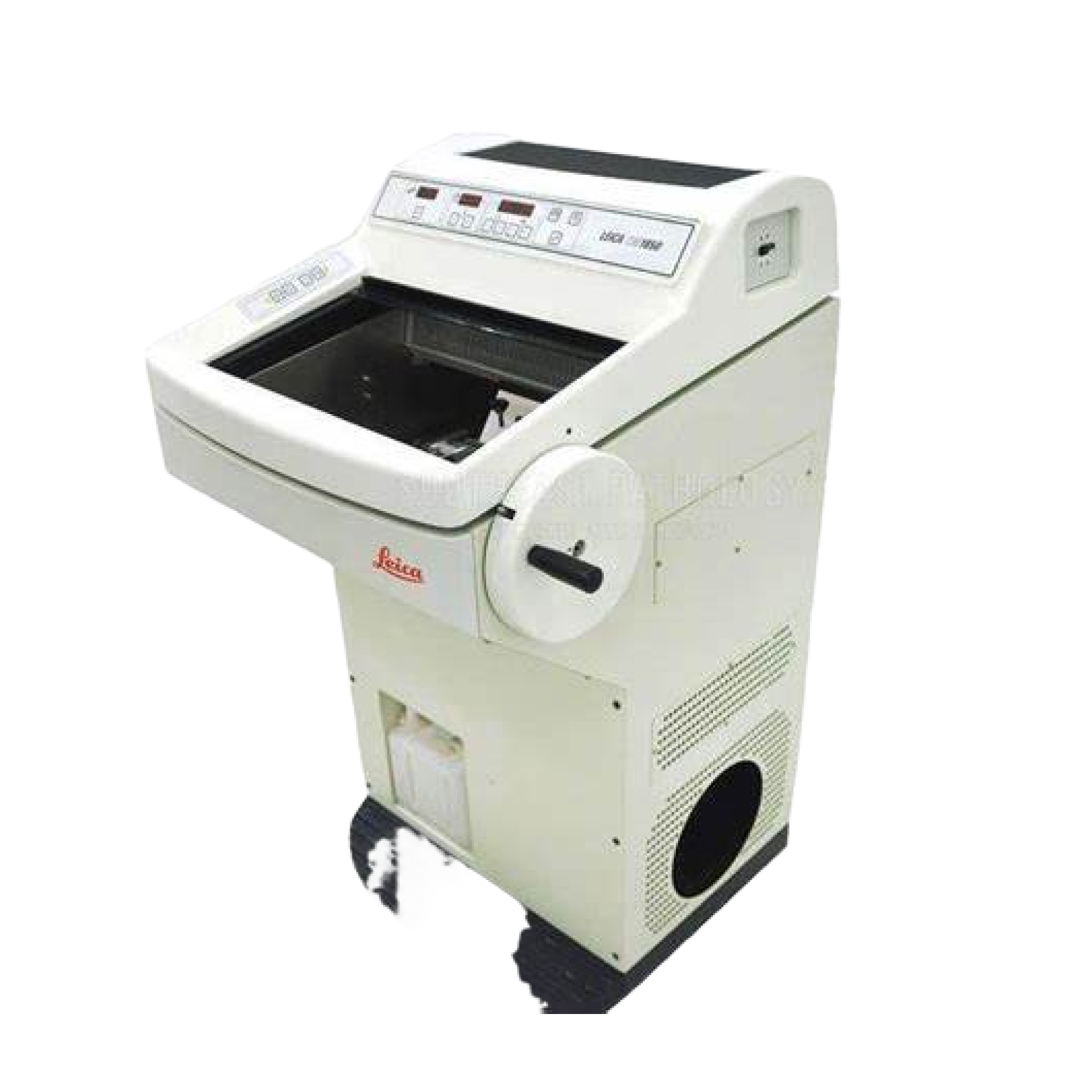

This Leica® CM1850 is a fully refurbished cryostat in great condition. The Leica® CM1850 cryostat’s design incorporates the proven excellent features of its predecessor, the Leica® CM1800, but additional emphasis was placed on power saving, increased efficiency and operator safety.

A new insulation technology leads power savings of approximately 10% compared to conventional heat insulation systems. This new feature enhances the durability of the refrigerating system and ensures stable cryochamber temperatures, even when operating in unfavorable environmental conditions in the lab such as high humidity.

Ideal for traditional pathology applications
Great for Mohs surgery

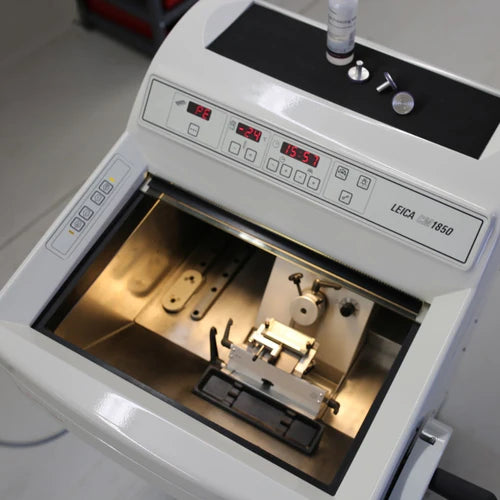

Spacious cryochamber with heated sliding window
Ergonomic knife holder
Easy to understand control panel
Enhanced insulation for better temperature control
Rapid specimen freezing
Course feed display panel
Easy to clean and disinfect

Product Features

Chamber temperature down to –35 °C
Actively cooled quick freeze shelf with Peltier unit for freezing down to –60 °C.
Power-saving refrigeration system
Splash-protected microtome
Motorized coarse feed at two speeds
Smooth specimen orientation with automatic centering
Automatic and manual chamber defrost cycles
Manual quick freeze shelf defrost cycle
Ergonomic design with convenient foot rest
LED
Compact dimensions
Efficient service and maintenance concept
PROFESSIONALLY REFURBISHED
1 YEAR WARRANTY
DEDICATED SALES PROFESSIONAL
ON STAFF PATHOLOGIST
CONSULTING PARTNERS
LAB DESIGN & FULL LAB SET UP OPTIONS

Summary and Explanation

The Leica CM1850 cryostat design builds on the outstanding features of its predecessor, the Leica CM1800, with added focus on power conservation, enhanced efficiency, and operator safety. This results in a flexible cryostat equipped with an optimized cooling system, swift specimen freezing, and precise specimen orientation, meeting the high-quality sectioning standards required in routine histology and clinical pathology.

It combines modern technology with ergonomic design for rapid and secure sectioning.

Product Specs

Technical Specifications:

Section thickness setting: 1 – 60 μm
Specimen feed: 25 mm
Vertical stroke: 59 mm
Maximum specimen size: 55 x 55 mm
Specimen orientation: 8° (x-, y-, z-Achse)
Electric coarse feed
Slow: 0.2 mm/s
Rapid: 0.7 mm/s

Dimensions

Width (w/o handwheel): 600 mm
Width (with handwheel): 730 mm
Depth: 730 mm
Height: 1140 mm
Weight (incl. microtome, without specimen cooling): approx.135 kg

Downloads

Leica CM1850 Product Brochure

Leica CM1850 Operator Manual
