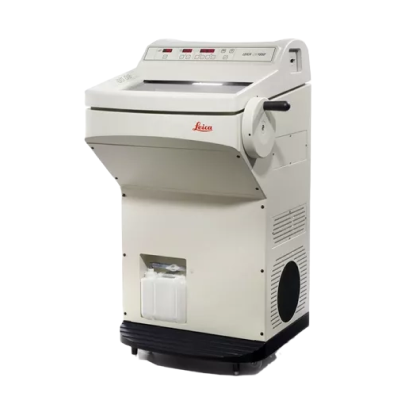

Leica CM1860UV Cryostat

The Leica CM1860 UV cryostat features a designated finger guard and safe blade removal mechanism, reducing the risk of cutting injuries.

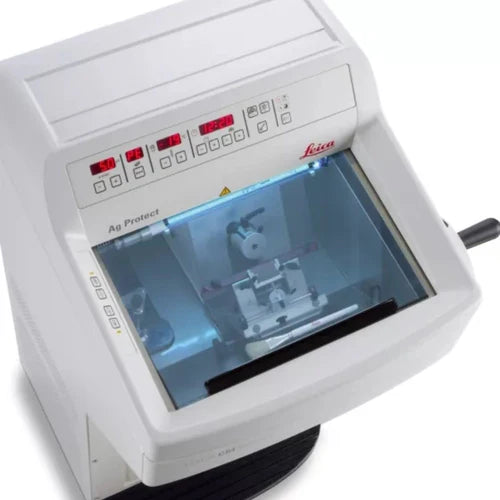

With its precision microtome and encapsulated design, it consistently produces high-quality sections and is easy to clean.

The cryostat also offers organized storage options and is user-friendly, allowing multiple users to work efficiently without extensive adjustments, thanks to single function keys and LED displays.

Width (with handwheel): 730 mm (28.7 in)

Depth:730 mm (28.7 in)

Height:1140 mm (44.8 in)

Weight (including microtome, without specimen coding):Approx. 135 kg (298 lbs)

Section thickness selection: 1 - 100 µm

Total Specimen feed: 25 mm

Vertical specimen stroke: 59 mm

Maximum specimen speed: 55 x 55 mm or 50 x 80mm

Leica CM1860 / CM1860UV Cryostat Brochure
