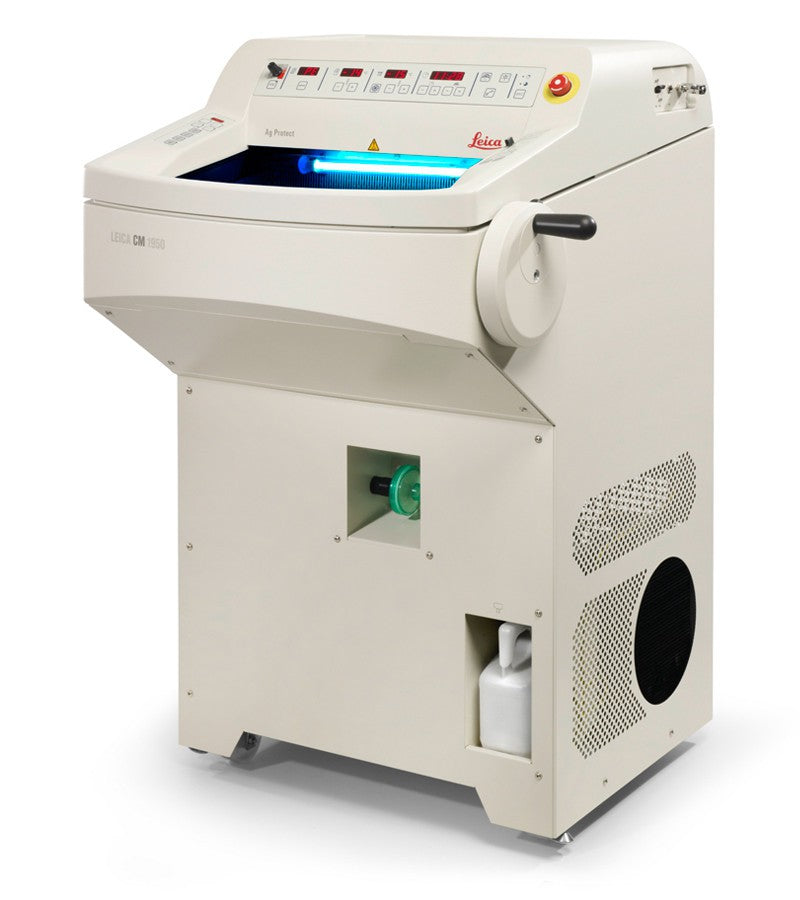

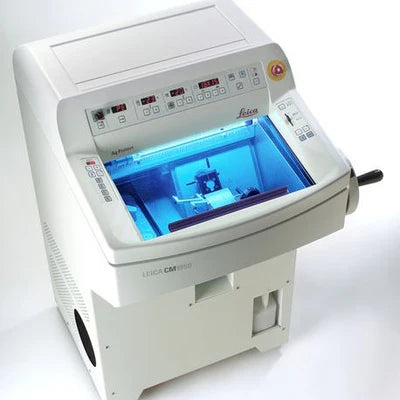

LEICA CM1950 Cryostat

Depending on your specific requirements, the Leica CM1950 cryostat can be ordered with a variety of options. Start with the standard instrument and choose from a range of options to meet your laboratory's individual needs.

For an efficient workflow, all instruments come with a spacious cryo cabinet to facilitate handling of multiple specimens. The cryostat provides sufficient space to organize your tools, freezing media and glass slides.

Width (with handwheel): 835 mm
Depth (cabinet only): 850 mm
Height (total): 1215 mm
Working height (armrest): 1025 mm
Weight (w/ motor and suct.): 425lbs
Operating temperature range: 18°C to 35°C
Maximum specimen size: 50 x 80 mm
Electric coarse feed: Slow: 300 μm/s, in 20 μm steps
Fast: 900 μm/s

Leica CM1950 Cryostat Brochure
