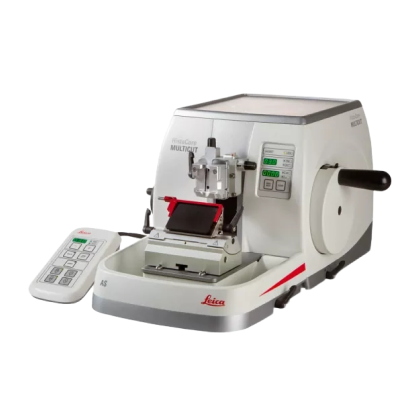

When you need the precision and speed of manual sectioning with the efficiency benefits of a semi-automated setup, the HistoCore MULTICUT saves the day.

The new generation of microtomes from Leica Biosystems is built upon our 145+ year heritage of market-leading microtome design. Combining the speed of a manual microtome with the precision of motorized specimen feeding, MULTICUT helps you get consistent, reproducible sections.

• Advance or retract the specimen in the position most comfortable for you- manually using the Personalized Coarse Feed Wheel or user-motorized with the push of a button.
• Enable fast and effortless trimming: with Fast Homing and Memory Position, the instrument can remember the optimal specimen position for your sectioning.
• Produce high quality sections for IHC when using MULTICUT with the RM CoolClamp.

Product Specifications
General
Type: Semi-Motorized
Nominal Supply Voltage: 100 / 120 / 230 / 240 V AC
Nominal Frequency: 50/60 Hz
Maximum Power Consumption: 40 VA
Protection Class: I
Power Fuses: 2 x T1.0 AL, 250V
Pollution Degree: 2
Overvoltage Category: II
Maximum Heat Emission: 70 J/s
Operating Temperature Range: +18°C to +30°C
Temperature Range During Storage: +5°C to +50°C
Relative Humidity During Operation: 20% to Max. 80% Non-Condensing
Relative Humidity During Storage: 10% to Max. 85% Non-Condensing
Dimensions & Weight
BASIC INSTRUMENT
Width (including handwheel and coarse feed wheel): 477 mm
Depth (including waste tray): 620 mm
Height (without top tray): 295 mm
Weight (without accessories): Approx. 31 kg
CONTROL PANEL
Type: Separate control panel & in-housing integrated instrument control panel
Width: 94 mm
Depth: 193 mm
Height: 50 mm
Height (in inclined position): 81 mm
Weight (net): 0.5 kg
Microtome Performance Specs
Specimen Feed: approx. 24 mm ±1 mm
Vertical Stroke: 70 mm ±1 mm
Large Standard Clamp: 55 x 50 x 30 mm
Super Cassette Clamp: 68 x 48 x 15 mm
Motorized Sectioning Speeds: N/A
SPECIMEN RETRACTION
In Manual Sectioning Mode: 5 - 100 µm (in 5 µm increments); can be turned off
In Motorized Sectioning Mode: N/A
SPECIMEN ORIENTATION
Horizontal: ± 8°
Vertical: ± 8°
SECTION THICKNESS SETTINGS
Range: 0.5 - 100 µm
Setting Values: 0.5 - 5 µm (in 0.5 µm increments)
5 - 20 µm (in 1 µm increments)
20 - 60 µm (in 5 µm increments)
60 - 100 µm (in 10 µm increments)
TRIMMING SECTION THICKNESS SETTINGS:
Range: 1 - 600 µm
Setting Values: 1 - 10 µm (in 1 µm increments)
10 - 20 µm (in 2 µm increments)
20 - 50 µm (in 5 µm increments)
50 - 100 µm (in 10 µm increments)
100 - 600 µm (in 50 µm increments)
