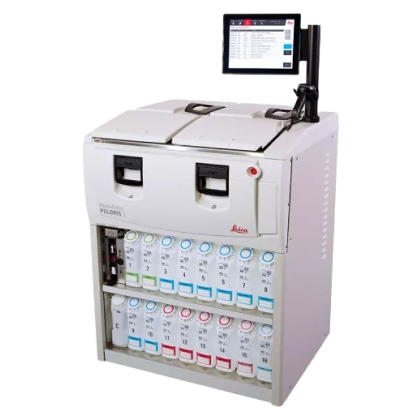

LEICA Peloris III Tissue Processor

Foundation for Success

The HistoCore PELORIS 3 seamlessly adapts to your incoming workflow demands without compromising tissue quality. World leading processing times, unmatched protocol flexibility, and an intuitive design help enable laboratories to provide same-day results to pathologists. Combined with advanced safety features, protecting both your laboratory and patient samples, the HistoCore PELORIS 3 will become your foundation for high-quality results; every time.c

TRANSPORT AND STORAGE (PACKED INSTRUMENTS)
Storage Temperature: –40 to 76°C (–40 to 169°F)
Storage Humidity (Non-Condensing): 10 to 95% RH
Shipping Methods: Road and Air Freight Compatible
Equivalent Altitude: < 4570 m Above Sea Level (i.e. the pressurization level of an aircraft)ENVIRONMENTAL (UNPACKED INSTRUMENTS)
Maximum Ambient Temperature: 35°C
Minimum Ambient Temperature: 5°C
Humidity (Non-Condensing): 10 to 80% RH
Altitude: 0 to 2000 m above sea level
Sound Pressure Level Output (at 1 m): < 65 dB
Maximum Heating Energy Output: 1450 W (100 to 120 V~)
2150 W (220 to 240 V~)

Dimensions (H x W x D): 1500 × 857 × 721 mm
(59 × 33.7 × 28.4 in)
Weight (Dry): 331 kg (730 lb)
Weight (Including Reagents): 430 kg (950 lb)
Work Surface Height (from Floor): Front – 1070 mm (42.1 in)
Rear – 1110 mm (43.7 in)
Cassette Capacity (Standard Protocols): 600 (High-Capacity)
528 (High-Capacity w/ Dividers)
Cassette Capacity (Xylene-Free Protocols): 432 (Spaced)
Retort Vacuum (Max.): - 70 kPa (g)
Retort Pressure (Max.): + 45 kPa (g)
Retort Agitation: Magnetically Coupled Stirrer (User-Selectable Operation)
Reagent Bottles: 16
Reagent Volume: 3.8 L to Max. 5 L (1 US Gal to Max. 1.32 US Gal)
Paraffin wax stations: 4 (each station is capable of filling one retort)

ELECTRICAL
Operating Voltage: 100 to 120 V~
220 to 240 V~
Operating Current (Max.): 15 A (100 to 120 V~)
10 A (220 to 240 V~)
Mains Frequency: 50 to 60 Hz (100 to 120 V~)
50 Hz (220 to 240 V~)
Power Consumption: 1450 W (100 to 120 V~)
2150 W (220 to 240 V~)

HISTOCORE I-SCAN
Dimensions: 174.5 x 64 x 38.8 mm
(6.9 x 2.5 x 1.5 in)
Weight: 235 g (0.5 Ibs) approx
Buttons:
Fill-in LED on/off button
Scanning/Photographing trigger button
Tick button
The HistoCore I-Scan scanner enables laboratories to scan 1D/2D barcodes and capture images via an integrated camera and barcode scanning engine. The scanner has an integrated TFT LCD to indicate device mode (scan/camera) and status. A USB cable connects the HistoCore I-Scan to the master instrument for power supply and data transfer. Three buttons on the device help control the scanner, the device mode is set by the master.
