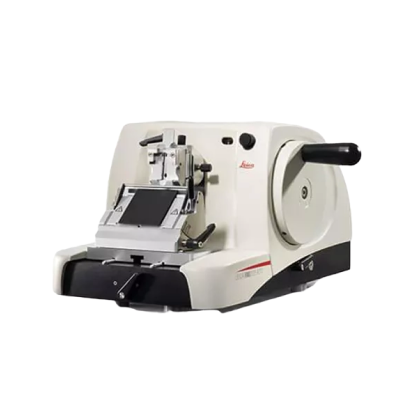

LEICA RM2125 RTS Rotary Microtome

Leica RM2125
• Compact, ergonomic overall design
• Ergonomically optimized handwheel handle
• Ultra-lightweight handwheel with integrated
quick-lock mechanism
• Movable shield for internal debris protection
• Black anodized finish on knife holder E
• Reinforced base plate
• Comfortable and easy-to-remove handrests
• Proven mechanical precision feed system
• Section thickness selection from 0.5 µm to 60 µm
• Quick-release specimen clamping system –
can be operated with one hand
Leica RM2125 RT
• Mechanical trimming function (10 µm and 50 µm)
• Specimen retraction

Dimensions (W x D x H): 438 mm x 472 mm x 265 mm (17.24 x 18.58 x 10.43 in)
Weight (without accessories): 29 kg (63.9 lbs)
Section thickness setting range: 0.5 - 60 µm
Total horizontal specimen feed: 25 mm
Vertical specimen stroke: 59 mm
Specimen retraction: ON/OFF approx. 20 µm
Specimen orientation: XY - ±8°
Trimming thickness: 10 µm, 50 µm
