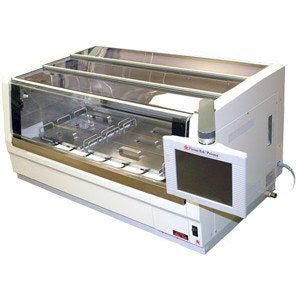

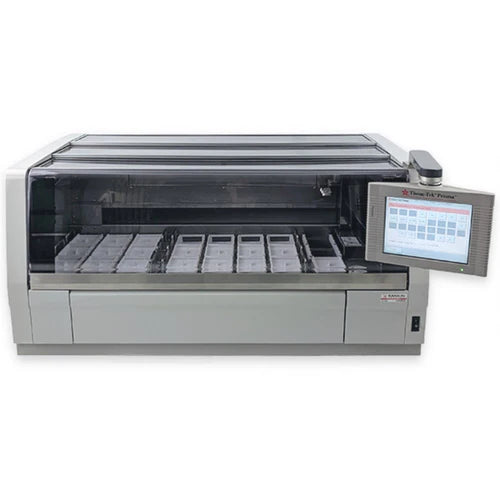

Name: Sakura™ Prisma 6130 H&E Slide Stainer
Brand: LABS-Laboratory Advanced Business Solutions
SKU: LAB PRISMA 6130
Availability: InStock

Description

Number of Reservoirs
Start: 1 to 3 stations
Reagent: 31 to 51 reservoirs
Drying: 0 to 2 stations
Wash: 0 to 4 stations (8 programmable steps)
Heating: optional 2 stations

Capacity
Reagent volume: 160, 260 and 680 mL
Staining protocols: 11 runs continuously loading and running at the same time
Baskets: 10 or 20 slide basket
Loading: Up to 60 slides per start station (up to 3 start stations, max of 180 slides)
Unloading: Up to 240 slides in the Film 4740

Temperature
Drying station: 30 ~ 65?C
Heating station: 30 ~ 70?C

Staining solutions: 100 solution names,pre-programmable

Staining protocols: 50 protocols, pre-programmable
Per staining protocol: max. 40 steps
Process time per step: max. 99h 59min 59sec
Time accuracy: Exact, extended up to 20%,
extended up to 50%, infinite

Mixing modes

ON (mixing)
WO (enhanced wash)
OFF (no mixing)

Summary and Explanation

With several configurations available for routine staining, special staining or a combination,
the Tissue-Tek® Prisma™ is the most flexible two-in-one multiple stainer in the market,
staining a maximum of 11 runs at the same time. The configurations are easy to
change due to the simple software and the convenient tray system, holding the
specific staining reservoirs. With the availability of three different volume reagent
reservoirs, the laboratory will experience the most efficient way of routine and
special staining for their tissue samples… more flexibility cannot be offered!

Product Specs

Throughput Up to 660 slides at the same
time in Prisma™

Dimensions Tissue-Tek® Prisma™
W x D x H cm 197 x 72 x 69 cm

Number of Reservoirs
Start 1 to 3 stations
Reagent 31 to 51 reservoirs
Drying 0 to 2 stations
Wash 0 to 4 stations
(8 programmable steps)
Heating optional 2 stations

Capacity
Reagent volume 160, 260 and 680 mL
Staining protocols 11 runs continuously loading, and
simultanuously running
Baskets 10- or 20 slide basket
Loading Up to 60 slides per run

Temperature
Drying station 30 ~ 65°C
Heating station 30 ~ 70°C
