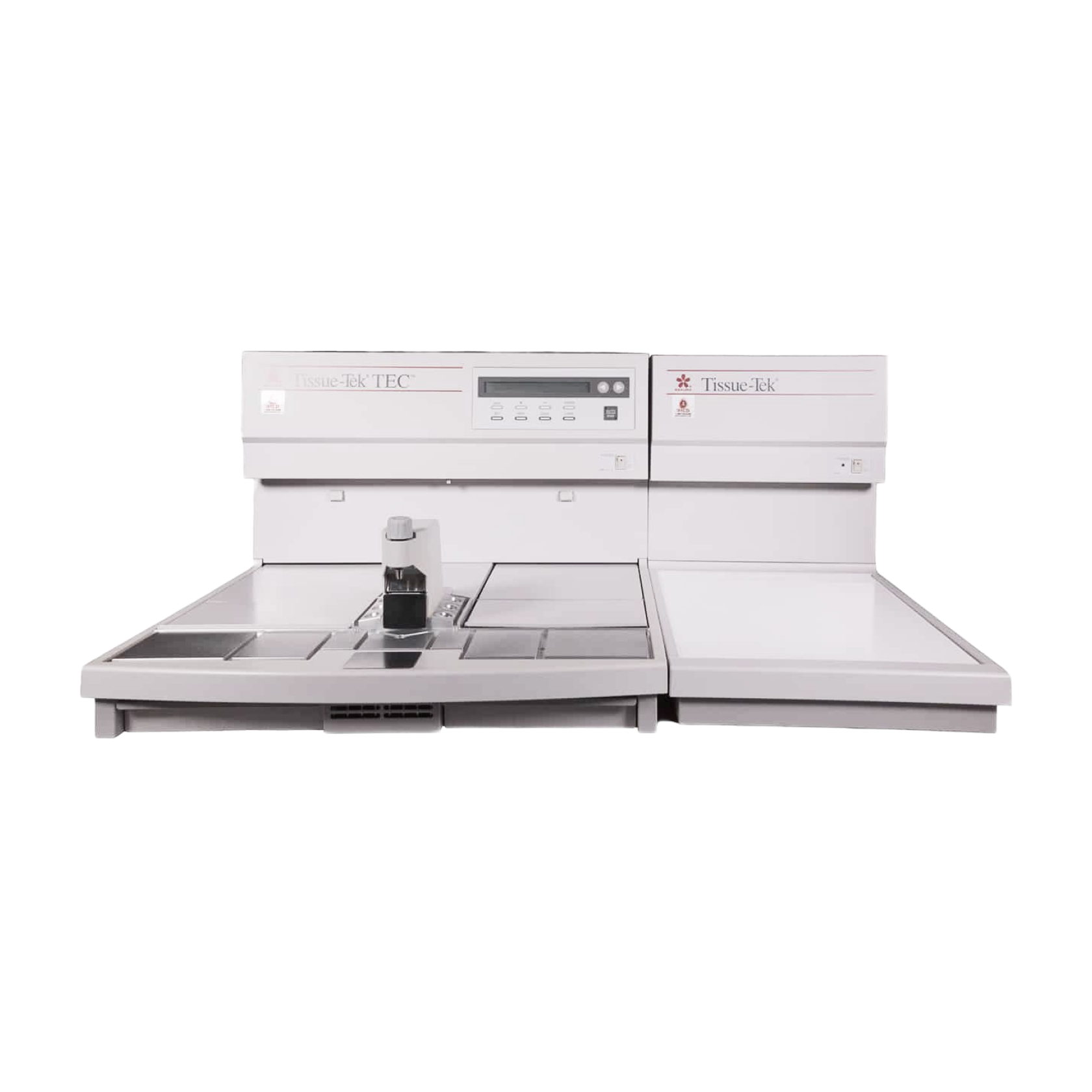

Name: Sakura® Tissue-Tek Tec™ 5 Tissue Embedding Station
Brand: LABS-Laboratory Advanced Business Solutions
SKU: LAB TEC5
Price: 12500.0 USD
Availability: InStock

Description

Product features:

Embedding station and cold plate included
Competitively priced
PROFESSIONALLY REFURBISHED
1 YEAR WARRANTY
DEDICATED SALES PROFESSIONAL
ON STAFF PATHOLOGIST
CONSULTING PARTNERS
LAB DESIGN & FULL LAB SET UP OPTIONS

Summary and Explanation

Modular console system with flexibility to
satisfy all embedding needs

• The modular design provides plenty of space for both specimen
orientation and embedding
• Modules can be arranged either left-to-right or right-to-left based on user preference and comfort
• Extended warming plates offer a large working surface that is enough to accommodate up to 10 cassettes on either side
• The large, nylon cryo surface has raised edges to contain moisture and provides ample space for up to 60 embedded blocks

Optional accessories for an enhanced
embedding experience

• Tissue-Tek® TEC™ 5 Magnifying Glass conveniently connects to the embedding console to allow for easy viewing of small tissue biopsies
• Tissue-Tek® TEC™ 5 Foot Pedal Switch allows foot-controlled paraffin dispensing
• Tissue-Tek® TEC™ 5 Electrical Forceps connect to the embedding console to provide consistent, even heating that prevents tissue and paraffin from sticking

Product Specs

Paraffin chamber: 4 liters
Left and right thermal chambers: 1.5 liters
Working area: up to 20 cassettes
Cryo plate: up to 60 blocks
Paraffin delivery Gravity feed with touch-plate activation and optional foot pedal control
Paraffin flow rate Rate-adjusted flow with control knob
Waste collection Drain channels in the heated working area route paraffin waste to two front waste drawers
Illumination Bright white LED
Automatic timer mode User-programmable, start-up and shutdown times for each day of the week
Heating time (Embedding Module) Paraffin and left/right chambers: 4 hours from room temperature start
Hot plate/forceps wells: 60 minutes
Cooling time (Cryo Module) 15 minutes from room temperature start
Temperature range
Paraffin and thermal chambers: 122 to 167oF (50 to 75oC)
Hot plate/forceps wells: 122 to 167oF (50 to 75oC)
Electric forceps (optional): 1 to 5
Cryo plate: 14 to 32oF (-10 to 0oC)
User interface display 2 lines, 40 characters per line
Alarms Audible beeps
Diagnostic function Self-diagnosis, error messages, power-out detection
Operating temperature 50 to 104oF (10 to 40oC)
Operational relative humidity 30% to 85% (non-condensing)
Rated voltage and current
Embedding Module: 115 VAC ± 10%, 60 Hz, 9 A
Cryo Module: 115 VAC ± 10%, 60 Hz, 2 A
Dimensions
Embedding Module: 22.6 (W) x 25.3 (D) x 14.8 (H) inches 57.5 (W) x 64.2 (D) x 37.7 (H) cm
Cryo Module: 13.0 (W) x 24.3 (D) x 14.8 (H) inches 33.0 (W) x 61.7 (D) x 37.7 (H) cm
Combined: 35.6 (W) x 25.3 (D) x 14.8 (H) inches 90.5 (W) x 64.2 (D) x 37.7 (H) cm
Weight Embedding Module: 57 lbs (26 kg)
Cryo Module: 48 lbs (22 kg)
Combined: 105 lbs (48 kg)
Certifications UL 3101-1, 1st ed.; IEC 1010-1 and CAN/CSA-C22.2 No. 1010.1-92
Regulatory status IVD, FDA Class 1
