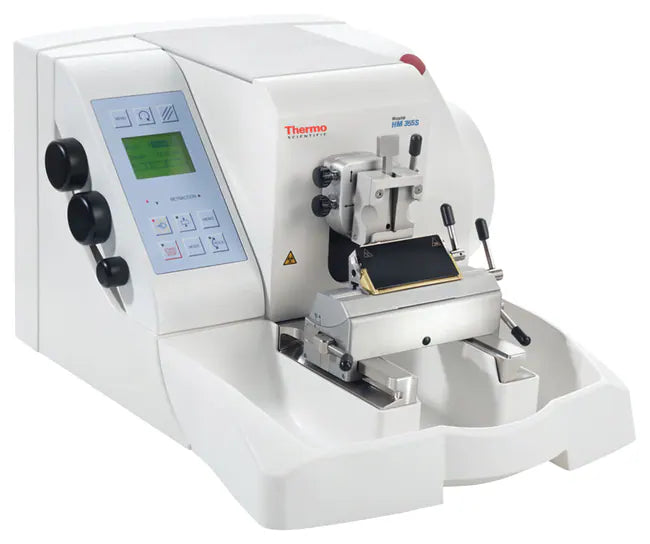

Thermo Scientific Microm HM 355 S Automated Microtome

Reproducible Quality
• X/Y fine orientation with reproducible zero positioning
• Memory function for specimen positioning
• Control panel featuring multi-function keypad and knobs allows for easy selection of section thickness, sectioning mode, speed control, memory function, and menu options.

Operator Safety
• Safe, ergonomic, and intuitive fully automated rotary microtome
• Motorized sectioning can be operated via speed/start-stop knob, start-stop
button, or optional foot pedal
• Prevention of accidental start by double-click operation and automatic brake
following motorized action
• Ergonomic, removable control panel can be located on either side of the microtome
• Easily accessible emergency stop button

Added Convenience
• Easily switch between thickness settings for trim and section/fine
• Rocking mode allows the handwheel to be rocked into a forward position allowing advancement of the specimen without a complete rotation of the handwheel
• Four motorized modes of operation (single section, interval, multi-section, and continuous)
• Large, removable section waste tray covers the entire working area

Dimensions (D x W x H): 20.5 x 16.1 x 11 in.
(52 x 41 x 28 cm)
Weight: 68.3 lbs / 31 kg
Horizontal feed range: 28 mm
Cutting stroke: 72 mm
Sectioning speed: 0-450 mm/s
Section thickness range: 0.5-100 µm
Trim thickness range: 5-500 mm
Retraction: 40 µm
Power requirements: 100-240 V, 50/60 Hz, 1.6A
